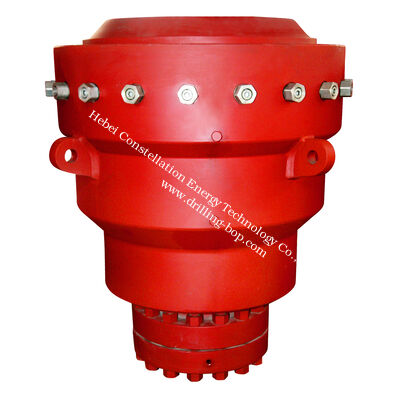

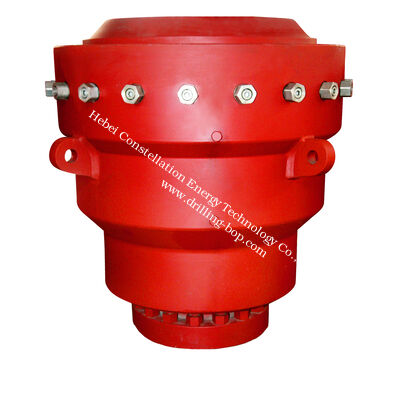

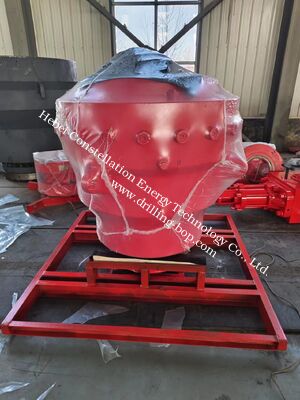

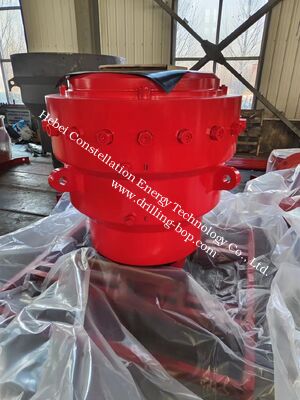

Hydril GK Type Annular BOP 13 5/8" Bore 5000psi Working Pressure Forging Blowout Preventer

Large Image : Hydril GK Type Annular BOP 13 5/8" Bore 5000psi Working Pressure Forging Blowout Preventer

Product Details:

Brand Name:	RZY
Certification:	API 16A & API 6A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	39500USD~45600USD
Packaging Details:	Fumigation-free wooden cases or iron cases packaging
Delivery Time:	60~75 days
Payment Terms:	T/T
Supply Ability:	20 units delivered within two months

Contact Now Chat Now

Detailed Product Description

Item:	Annular BOP	Model:	Hydril GK Type
Bore:	13 5/8” (346.1mm)	Working Pressure:	34.5MPa（5,000psi）
Overall Dimensions:	1510mm×1510mm×1434mm	Weight:	6917kg
Highlight:	13 5/8" Bore Annular BOP , 5000psi Working Pressure Blowout Preventer , Forging BOP Hydril GK Type

Hydril GK Type 13 5/8"-5000psi Forging Annular BOP

The Hydril Annular Blowout Preventer (BOP) is a versatile pressure control system engineered for surface rigs, offshore platforms, and subsea operations. With a proven track record in the petroleum industry, it delivers reliable well control with customizable features and operational efficiency.

Key Features & Benefits

Simplified Design: Only two primary components (piston and packing element) minimize wear points, reducing maintenance requirements and operational downtime
Stable Long-Piston Configuration: Features a length-to-diameter ratio of nearly 1:1, preventing cocking and binding during operations with off-center drill pipe or uneven sediment accumulation
Conical Bowl Piston Design: Serves as a sealing surface against rubber packing elements, eliminating metal-to-metal contact and extending service life
Field-Replaceable Wear Plate: Provides an upper non-sealing wear surface for packing elements, enabling rapid on-site maintenance and cost-effective repairs
Dual Head Configuration Options: Screwed head design ensures secure body-head connection without loose components; latched head (available for 13-5/8"-5000 psi and larger models) facilitates quick access to packing elements and seals
Robust Sealing System: Large pressure-energized seals dynamically seal piston chambers, ensuring extended seal longevity and minimal maintenance
Comprehensive Testing & Compliance: Operating chambers tested to full working pressure; meets NACE MR-01-75 standards for sulfide stress cracking resistance
Flexible Packing Element Selection: Two rubber compound options (natural rubber and nitrile rubber) accommodate diverse drilling conditions

Operational Principles

Basic Actuation: Requires both opening and closing hydraulic pressure. Seal-off is achieved by applying hydraulic pressure to the closing chamber, raising the piston and forcing the packing element into sealing engagement with drill pipes or open bore.

Well Pressure Assistance: After initial seal establishment, well pressure helps maintain the seal (excluding 7-1/16"-15,000 and 20,000 psi models requiring sustained closing pressure).

Stripping Operations: Drill pipe can be rotated and tool joints stripped through closed packing elements while maintaining seal integrity. Optimal packing element life is achieved by setting closing chamber pressure to permit minimal drilling fluid leakage for lubrication.

Control System Integration: Compatible with standard accumulator units equipped with separate pressure regulator valves for annular BOP operation and sufficient accumulator volume.

Supplementary Components: For slow-responding pressure regulator valves, install an accumulator (surge absorber) precharged to 50% of required closing pressure in the closing chamber control line. Subsea operations may require additional accumulators in opening chamber lines to prevent pressure fluctuations.

Technical Specifications

Item	Specification
Model	Model H 13 5/8″-5000psi
Drift Diameter	13 5/8" (346.1mm)
Rated Working Pressure	34.5MPa (5,000psi)
Hydrostatic Test Pressure	51.8MPa (7,500psi)
Hydraulic Control Rated Working Pressure	20.7MPa (3,000psi)
Recommended Hydraulic Control Working Pressure to Close Open Hole	≤19MPa (2,714psi)
Recommended Hydraulic Control Working Pressure to Seal Pipe	8.3~10.4MPa (1,200~1,500psi)
Maximum Working Pressure to Close Open Hole	17.5MPa (2,500psi)
Maximum Open Volume	54L
Maximum Close Volume	68L
Weight	6917kg
Shackle Lifting Weight	20t
Temperature Ratings for Non-Metallic Materials	BGB(PR1, -18℃~+93℃)
Temperature Ratings for Metallic Materials	T-20/250 (-29℃~+121℃)

Note: BOP is designed and manufactured according to API Spec 16A. All metallic materials contacting well fluids meet NACE MR0175 requirements for sour service applications.
